Product Details:
|
| Application: | Oil And Gas Well Pressure Control | Material: | Alloy Steel |
|---|---|---|---|
| Production Level: | PLS 2 | Temperature Class: | T-20/250 |
| Standard: | API 16A | Product Name: | Double Ram BOP |
| Working Pressure: | 3000 Psi | Bore Size: | 11" |
| High Light: | 3000psi Gas Well Oil Blowout Preventer,Double RAM Oil Blowout Preventer,Alloy Steel Oil Blowout Preventer |
||

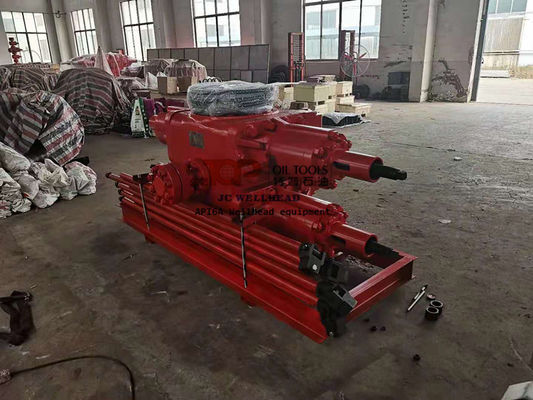

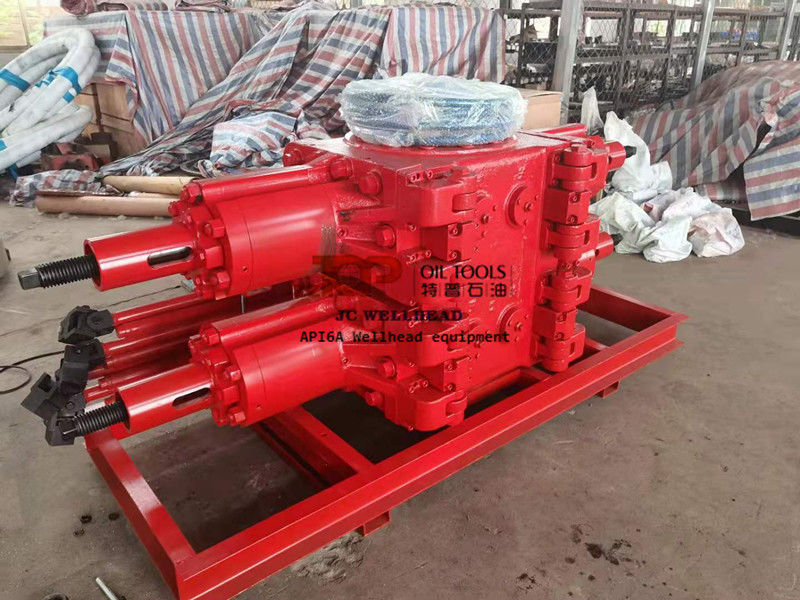

Oil & Gas Well Blowout Preventer 11"x 3000 psi Double RAM BOP
Doule Ram BOP is the high pressure control equipment for oil and gas well drilling operation and production operation. The double RAM BOP is designed according to API 16A specification and with high quality front packer, top packer and seal assembly for intermediate flange, which assures fine working performance under high and low temperature or acid environment. The Ram BOP is mainly composed of housing, side gate, hydro-cylinder, cylinder cap, piston, piston rod, lock shaft, sealing parts, ram, etc. Oil well's sealing or opening is achieved by moving ram, which is driven by piston rod and piston with hydraulic force.
Type of RAM BOP
* The RAM BOP can be divided into single ram, double ram and three ram BOP.
* According to the ram opening and closing method,there are hydraulic control BOP and manual control BOP.
| 1 | Top connection | 11" x 3000psi 6B R53 studded |
| 2 | Bottom connection | 11" x 3000psi 6B R53 flanged |
| 3 | Side outlets | Two 3-1/8" 3000Psi studded, c/w blind flange |
| 4 | Type of ring grooves | 316 stainless steel inlaid ring grooves |
| 5 | Manual locking mechanism, with 3m extension pipe Without rams | |
| 6 | Hydraulic port thread | 1" NPT box |
| 7 | Metallic material temperature class | T-20/250 |
| 8 | NON-metallic material temperature class | BGB |
| 9 | Performance requirement | PR1 |
| 10 | Parts | With bolts, nuts and ring gasket for bottom connection |
| 11 | Standard | Accord with API 16A 4th Edition and NACE MR-0175 H2S service |
| 12 | RAM Specification | Ram assembly - Blind Ram for 11"x3000 psi |
| VBR 2 7/8"-- 4 1/2" for 11"x3000 psi | ||
| Ram assembly 2-7/8" for 11"x3000 psi | ||
| Ram assembly 3-1/2" for 11"x3000 psi |
About JC Wellhead
Jingcheng Petroleum Machinery Manufacturing Co.,Ltd was established in 2008, we are specialized in design and manufacturing of the oilfield wellhead equipment. We - YCJC are a registered supplier for CNPC, GWDC, CCDC in China.
In 2012, JC wellhead jointed with ZZ TOP Oil Tools, and found the office in Xi'an mainly engaged in abroad marketing, through these years of efforts, our wellhead equipment is exported to many countries, such as Thailand, UAE, Iran, Brazil, Argentina, USA etc. and enjoyed good reputation from the customers.
Product Scope
*BOP : Taper Rubber Annular BOP, Spherical rubber Annular BOP, Single Ram BOP, Double Ram BOP
* Wellhead Equipment: X-mas tree, casing head, casing hanger, tubing head, tubing hanger, casing spool, tubing spool, API Clamp, API Clamp Hub
* Wellhead valve: Gate valve, Choke valve, Check valve, Mud valve, and valve parts
* Wellhead adapter: Double studded adapter flange, spacer spool, riser spool, drilling spool, weldneck flange, union flange adapter
* Other wellhead equipment parts: Hammer union, Elbow, swivel joint, block cross, Block Tee,
* Oil well manifold: choke manifold, kill manifold, testing manifold
Welcome to contact us for more information!
