Product Details:
|
| Application: | Oil Well Drilling Operation | Product Name: | Choke And Kill Manifold |
|---|---|---|---|
| Material Class: | CC | Temperature Rating: | U |
| Standard: | API 16C & API 16A | Production Level: | PSL 3 |
| Working Pressure: | 5000 Psi | Specification: | 2 9/16" Inner Diameter |
| High Light: | 5000 psi Wellhead Manifold,API 16C Choke Manifold,Well Testing Choke Manifold |
||

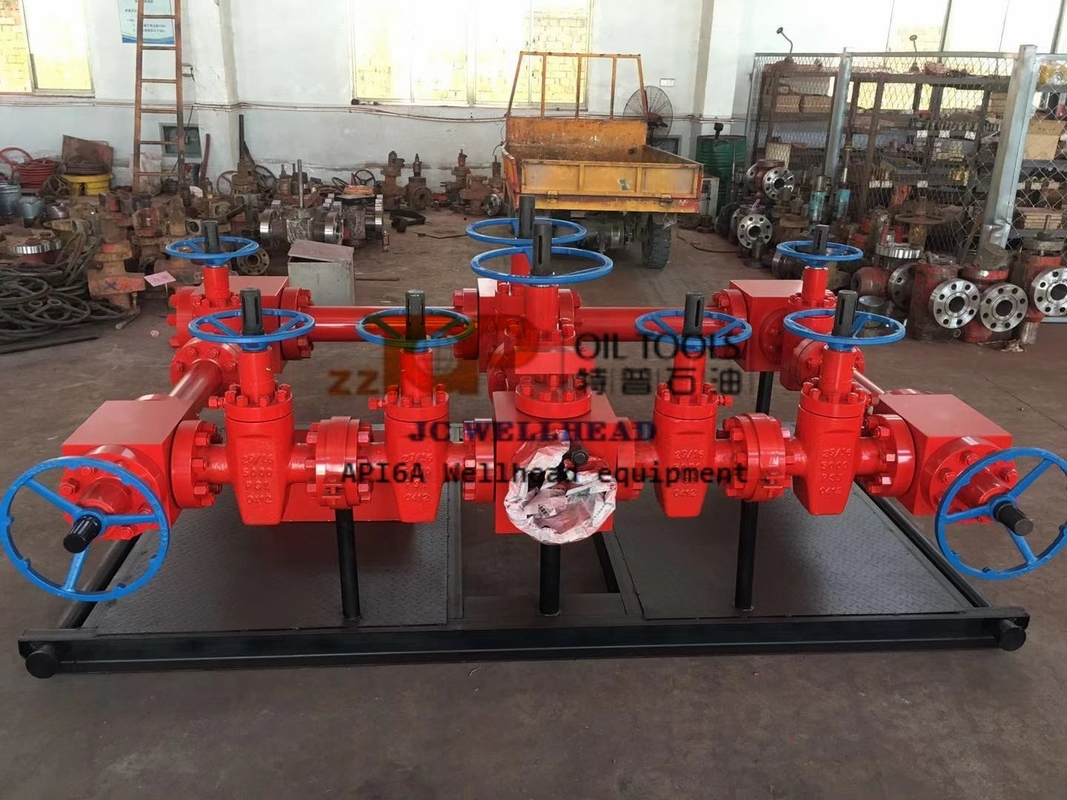

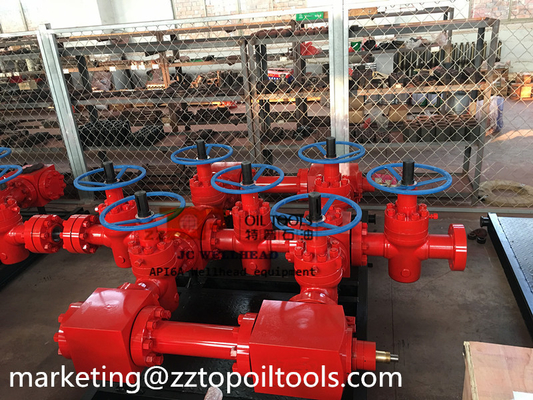

API 16C Choke Manifold for High Pressure Well Testing Service
The choke manifold is used for oilfield well testing operation.The choke manifold is necessary well-control equipment in effectively controlling kill and carrying out pressure controlling for oil and gas well. The choke manifold consists of manual choke valves, gate valves, anti-seismic pressure gauge, flange adapter, buffer tube and skid etc. The chokes can be fixed or adjustable or a mix of both. The redundancy is needed so that if one choke has to be taken out of service, the flow can be directed through another one. The major parts are specially heat treated, with good abrasion and corrosion resistance capabilities. Various types of manifolds are available at customers' option.
Benefits
* The Choke manifold used for well testing service adopts single wing control structure, which is more simple.
* It is convenient to operate the choke manifold.
* The choke valve can be available as per the customers' requirements.
Technical parameter of 2 9/16" Well Testing Choke manifold
| WORKING PRESSURE, psi | 5000 |
| TEST PRESSURE, psi | 7000 |
| TEMPERATURE OPERATION, degF | 250 |
| MANIFOLD ID, pulg | 3 |
| INLET | 3 pulg FIG 602 |
| OUTLET | 3 pulg FIG 602 |
| VALVES | 4 valve esclusa 2 9/16" tipo cameron |
| 1 valve 2 9/16" tipo OCT | |
| CHOKES | 1 adjustable choke |
| 1 positive choke |
About JC Wellhead
In 2012, JC wellhead jointed with ZZ TOP Oil Tools, and found the office in Xi'an mainly engaged in abroad marketing, through these years of efforts, our wellhead equipment is exported to many countries, such as Thailand, UAE, Iran, Brazil, Argentina, USA etc. and enjoyed good reputation from the customers.
ZZ TOP Oil Tools can also support client with One-Stop Procurement Service and flexible payment term under short or long term financing service. We always believe that the success of our company is directly related to our strict quality control and professional service. From the raw material booking till finished products, the inspector will be appointed to supervise the whole processing. We always provide clients with innovative solutions, quality materials and timely delivery.
Product Scope
*BOP : Taper Rubber Annular BOP, Spherical rubber Annular BOP, Single Ram BOP, Double Ram BOP
* Wellhead Equipment: X-mas tree, casing head, casing hanger, tubing head, tubing hanger, casing spool, tubing spool, API Clamp, API Clamp Hub
* Wellhead valve: Gate valve, Choke valve, Check valve, Mud valve, and valve parts
* Wellhead adapter: Double studded adapter flange, spacer spool, riser spool, drilling spool, weldneck flange, union flange adapter
* Other wellhead equipment parts: Hammer union, Elbow, swivel joint, block cross, Block Tee,
* Oil well manifold: choke manifold, kill manifold, testing manifold
Welcome to contact us for more information!
