7 1/16" X 5000# Tubing Head Spool High Pressure Oil Wellhead Equipment

Certification
Good quality Wellhead Casing Head for sales
Good quality Wellhead Casing Head for sales
Great Job for providing qualifed equipment to us, Very impressive. My honor to work with your guys.

—— Akri Andreas

Hope the relationship can last stronger and stronger. Appreciate your valuble works.

—— Omar Rashid

My reliable partner, thanks for your support in last years, let us move next step... Good luck.

—— Pradeep Abraham

I'm Online Chat Now

7 1/16" X 5000# Tubing Head Spool High Pressure Oil Wellhead Equipment

China 7 1/16" X 5000# Tubing Head Spool High Pressure Oil Wellhead Equipment supplier
7 1/16" X 5000# Tubing Head Spool High Pressure Oil Wellhead Equipment supplier 7 1/16" X 5000# Tubing Head Spool High Pressure Oil Wellhead Equipment supplier

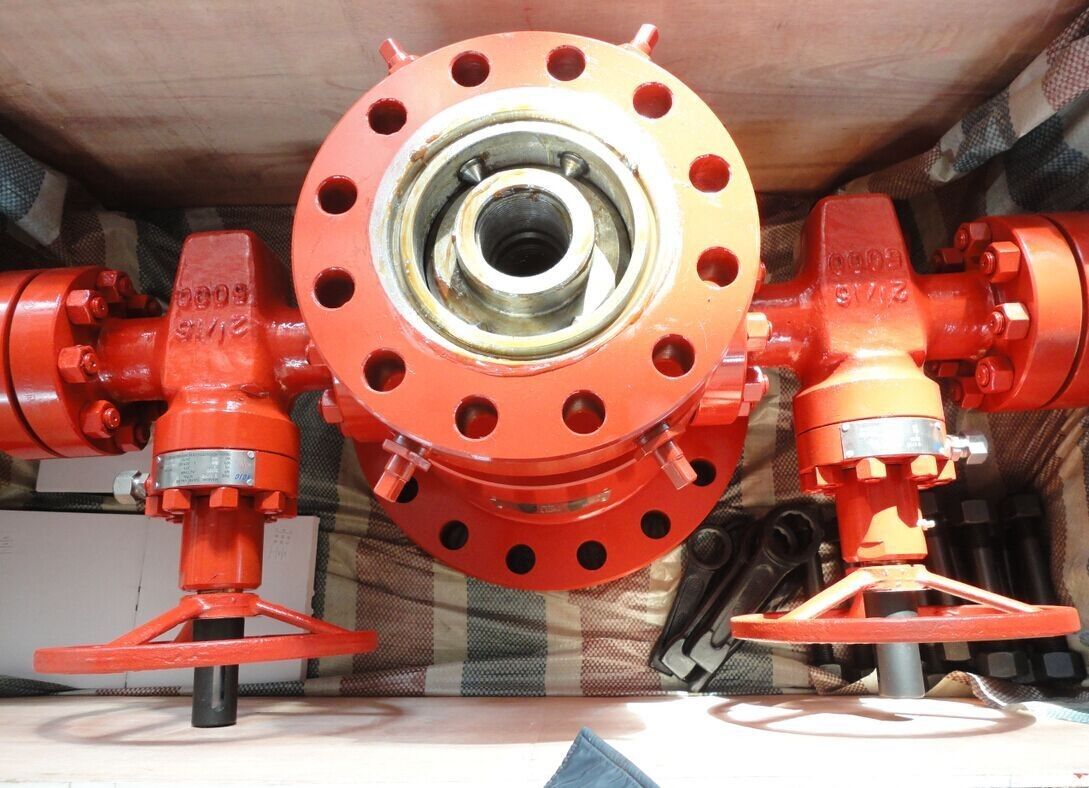

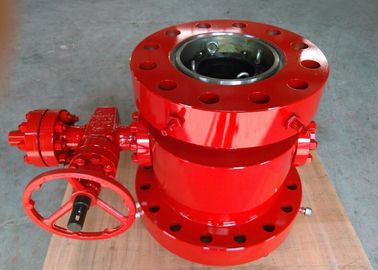

Large Image :  7 1/16" X 5000# Tubing Head Spool High Pressure Oil Wellhead Equipment

Product Details:

Place of Origin: China
Brand Name: JC Wellhead
Certification: API 6A
Model Number: 7 1/16" X 5000psi Tubing Head Spool

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Polywood case for land, air, ocean shipment
Delivery Time: 30-45 days
Payment Terms: T/T, L/C, D/P
Supply Ability: 100 sets / month
Contact Now
Detailed Product Description
Application: Oil Well Drilling Operation Usage: Oil Well Flow Control
Material Class: AA Production Level: PLS 3
Temperature Class: U Standard: API 6A
Product Name: Wellhead Tubing Head Spool Working Pressure: 5000 Psi
Specification: 7 1/16" X 5000#

API 6A Tubing Head Spool Alloy Steel



The tubing head is designed and manufactured according API6A specification.  The tubing Head named Tubing Head Spool or Tubing Spool, is an important mechanical equipment used on the wellhead assembly. It is usually located in the lower section of the wellhead equipment and above the casing hanger and casing spool. Tubing head is designed with versatile straight-bore and installed with tubing hanger in different specification. With 45° shoulder design, the tubing head has high load capacity. Tubing head with side Outlet Connection Form Threaded flange side outlet,design with VR plug the tubing head is connected to the upper casing head with the christmas tree and applied for sealing the annular space the string and oil-layer casing.



Technical parameter of tubing head



Product Name: Tubing Head Spool

Bore Size: 7-1/16", 9", 11", 13-5/8"

Standards: API Spec 6A, NACE MR0175, ISO 9001, ISO14001, CE etc

Working Pressure: 2000 PSI to 20000 PSI

Outlets: API 6B or API 6BX Flanged Top & Bottom

Material Class: AA, BB, CC DD, EE, FF

Temp Class: L, P, R, S, T, U, V

Performance Requirement: PR1, PR2

Product Specification Level: PSL1, PSL2, PSL3, PSL4



Specification of the tubing head spool

Bottom flange Top flange
Size W.P. (psi) Size W.P. (psi) A mm (in) B mm (in) C mm (in)
7-1/16" 5, 000 7-1/16" 5, 000 600 (23.62) 122 (4.80) 180 (7.09)
10, 000 7-1/16" 10, 000 600 (23.62) 122 (4.80) 180 (7.09)
10, 000 7-1/16" 10, 000 600 (23.62) 160 (6.30) 180 (7.09)
15, 000 7-1/16" 15, 000 640 (25.20) 160 (6.30) 180 (7.09)
11" 2, 000 7-1/16" 2, 000 500 (19.69) 160 (6.30) 180 (7.09)
2, 000 7-1/16" 3, 000 560 (22.47) 122 (4.80) 180 (7.09)
3, 000 7-1/16" 3, 000 560 (22.47) 122 (4.80) 180 (7.09)
3, 000 7-1/16" 5, 000 600 (23.62) 160 (6.30) 180 (7.09)
3, 000 9" 3, 000 660 (25.98) 209 (8.23) 220 (8.66)
3, 000 9" 5, 000 660 (25.98) 209 (8.23) 220 (8.66)
5, 000 7-1/16" 5, 000 630 (24.80) 160 (6.30) 180 (7.09)
5, 000 7-1/16" 10, 000 635 (25) 160 (6.30) 180 (7.09)
5, 000 9" 10, 000 790 (31.10) 209 (8.23) 220 (8.66)
10, 000 7-1/16" 10, 000 635 (25) 160 (6.30) 180 (7.09)
10, 000 7-1/16" 15, 000 700 (27.56) 160 (6.30) 180 (7.09)
10, 000 9" 10, 000 830 (32.68) 209 (8.23) 220 (8.66)
10, 000 11" 10, 000 680 (26.77) 160 (6.30) 280 (11.02)
10, 000 11" 15, 000 700 (27.56) 160 (6.30) 280 (11.02)
13-5/8" 2, 000 7-1/16" 3, 000 590 (22.23) 160 (6.30) 180 (7.09)
2, 000 9" 3, 000 590 (22.23) 209 (8.23) 220 (8.66)
2, 000 11" 3, 000 590 (22.23) 230 (9.06) 280 (11.02)
2, 000 11" 5, 000 600 (23.62) 230 (9.06) 280 (11.02)
2, 000 13-5/8" 3, 000 580 (22.83) 230 (9.06) 350 (13.78)
3, 000 7-1/16" 3, 000 660 (25.98) 160 (6.30) 180 (7.09)
3, 000 7-1/16" 5, 000 660 (25.98) 160 (6.30) 180 (7.09)
3, 000 9" 3, 000 660 (25.98) 209 (8.23) 220 (8.66)
3, 000 9" 5, 000 680 (26.77) 209 (8.23) 220 (8.66)
3, 000 11" 3, 000 660 (25.98) 230 (9.06) 280 (11.02)
3, 000 11" 5, 000 660 (25.98) 230 (9.06) 280 (11.02)
3, 000 13-5/8" 5, 000 600 (23.62) 230 (9.06) 350 (13.78)
5, 000 7-1/16" 5, 000 640 (25.20) 160 (6.30) 180 (7.09)
5, 000 7-1/16" 10, 000 650 (25.59) 160 (6.30) 180 (7.09)
5, 000 11" 5, 000 630 (24.80) 230 (9.06) 280 (11.02)
5, 000 11" 10, 000 680 (26.77) 230 (9.06) 280 (11.02)
5, 000 13-5/8" 5, 000 680 (26.77) 259 (10.20) 350 (13.78)
5, 000 13-5/8" 10, 000 700 (27.56) 230 (9.06) 350 (13.78)
10, 000 11" 15, 000 800 (31.50) 230 (9.06) 280 (11.02)
10, 000 13-5/8" 15, 000 820 (32.28) 230 (9.06) 350 (13.78
