Product Details:
|
| Application: | Oil Well Drilling Operation | Usage: | Oil Well Drilling Rig Component |
|---|---|---|---|
| Product: | Mud Pump | Standard: | API 7K |
| Process Type: | Forging | Condition: | New |
| Model: | F1600 | Working Condiction: | Standard Service |
| High Light: | drilling rig parts,workover rig parts |
||

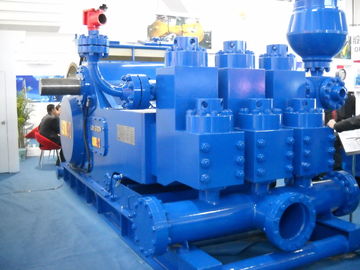

Oil Well Drilling Rig Components BOMCO Mud Pump F1600 and Parts
Mud pumps are the important part for the oil well drilling operation, it is manufactured according to API 7K. The mud pumps are single horizontal triplex piston pumps, in the deep and ultra-deep wells, the drilling process cycle of drilling fluid, cleaning the bottom of the well to carry cuttings, cooling and lubricating bits and reinforced sidewall, used in conjunction with high pressure water jet bit rock crusher help improve drilling speed; Meanwhile, can also provide a mobile drilling mud pit as a driving force.
Specification of Mud pump
| Model | F-500 | F-800 | F-1000 | F-1300 | F-1600 |
| Type | Triplex single acting | Triplex single acting | Triplex single acting | Triplex single acting | Triplex single acting |
| Rated Power | 373kw 500HP |
596kw 800HP |
735kw 1000HP |
969kw 1300HP |
1193kw 1600HP |
| Rated Speed | 165 SPM | 140 SPM | 140 SPM | 120 SPM | 120 SPM |
| Stroke(mm/inch) | 190/7 1/2 | 254/10 | 254/10 | 305/12 | 305/12 |
| Max. Liner Dia. | 170/6 3/4 | 170/6 3/4 | 170/6 3/4 | 180/7 | 180/7 |
| Gear Type | Herringbone | Herringbone | Herringbone | Herringbone | Herringbone |
| Valve Pot | API-5 | API-6 | API-6 | API-7 | API-7 |
| Gear Ratio | 4.286: 1 | 4.207: 1 | 4.207: 1 | 4.206: 1 | 4.206: 1 |
| Suction Inlet | 203/8 | 305/12 | 305/12 | 305/12 | 305/12 |
| Discharge Inlet | 4Flange 5000 psi |
5Flange 5000 psi |
5Flange 5000 psi |
5Flange 5000 psi |
5Flange 5000 psi |
| Lubrication | Forced& Splash |
Forced& Splash |
Forced& Splash |
Forced& Splash |
Forced& Splash |
| Max. Pressure | 27.2Mpa 3945 psi |
34.5Mpa 5000 psi |
34.5Mpa 5000 psi |
34.5Mpa 5000 psi |
35Mpa 5080 psi |
About JC Wellhead
Jingcheng Petroleum Machinery Manufacturing Co.,Ltd was established in 2008, we are specialized in design and manufacturing of the oilfield wellhead equipment. We - YCJC are a registered supplier for CNPC, GWDC, CCDC in China.
In 2012, JC wellhead jointed with ZZ TOP Oil tools to expand the international business, in order to meet the customers' various requirement, we work with other large drilling rig companies to supply the other oilfield equipments, such as drilling rig components (mud pump & parts, rotary swivel, travelling block, hook etc), handling tools ( slip, elevator, spider, casing tong, power tong, mual tong etc.) and so on.
