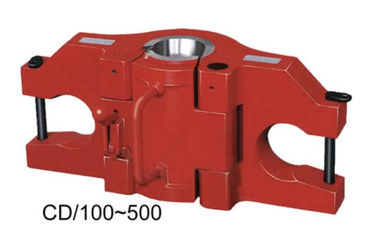

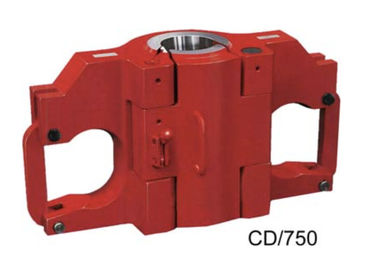

Standard Service Drilling Handling Tools CD Type Side Door Elevator API 8C

Description
Application: Handling Drill Rod Casing Usage: Oilfield Handling Tools
Product: Drill Pipe And Casing Standard: API8C
Process Type: Forged Condition: New
Size: 4 1/2-30" Material: Alloy Steel
Working Condiction: Standard Service
High Light:

drill pipe handling equipment

,

drilling handling tools

Oil Well Handling Tools Manual Tong Type DB



CD-series elevators are the important tools for hanging drill rods, casing pipes, drill

collarless and for oil pipes elevation and descend in the works of well drilling, exploration or repairing by the petroleum drilling and geologic at prospecting departments. Before using the products, please read carefully “instruction manual”.

“CD” series elevators are of reasonable designs, easy operation, safety and reliability, quality mentality materials and are manufactured by the adoption of advanced science and technologies and specially heat – treated with strong tenacity. They have undergone the strict test and non – damage inspections, which ensures they have the advantageous structural strength and wear – re – sizing properties. It is fit for elevating hanging drill rods from 2.3/8 ′′~5.1/2′′,casing pipes from 4.1/2′′~30′′,drill collar of diameter From 4.1/8′′~11.1/4′′ and oil pipe from 2.3/8′′~4′′.The max load are of two series 360kN(40t),585kN(65t), 675kN(75t),900kN(100t),1125kN(125t),1350kN(150t),1800kN(200t),2250kN (250t),2700kN(300t),3150kN(350t).

All the technical parameters and properties of the “CD” series elevators are in conformity with the requirements SY5035 and API Spec 8C.



The CD – series side door elevator, is mainly composed of the body, valve and other parts. Valve are connected with the body by valve axle and role around the valve axle, Which has the function of opening and closing the elevator. When the valve close the are automatically yoked tight with the body through the upper and lower lock pegs. Press down the handle of lock peg and pull outward, the valve will open. On the top the body is fixed

with the dual safety block iron due to which the valve cannot open or close when the elevator is been lifting. Only when there is no block iron on the load – bearing surface of the body, can the valve be opened freely for safely protection.

For the safety of lowering the steel tubes. Each elevator has a pair of safety pegs. Place the elevator links links the ear bores of two sides of the body and insert the safety pegs to prevent the elevator links off to ensure the safety of elevating.



Main Technical Parameters




Elevators for hanging drill pipe





Specification

Bore Dia.mm





Max Load kN(t)

 Drill pipe Size and Type

Top Bore

Bottom Bore

in

mm

CD 63×69-(Max. Load)



69



63

1110(125) 1335(150) 1780(200)

2225(250) 2670(300) 3115(350)



2.3/8EU



60.3

CD 76×86-( )



86



76



2.7/8EU



73.0

CD 92×103-( )



103



92



3.1/2EU



88.9

CD 105×110-( )



110



105



4IU



101.6

CD 105×118-( )



118



105



4EU



101.6

CD 118×122-( )



122



118



4.1/2IU



114.3

CD 118×122-( )



122



118



4 1/2IEU



114.3

CD 118×131-( )



131



118

4.1/2EU

114.3

CD 131×135-( )

135

131

5IEU

127.0

CD 144×149-( )



149



144

5.1/2IEU

139.7



Elevators for hanging casings



Specification Bore dia. Mm Max Load KN (t) External diamter of casing
in mm
CD 117- (Max. Load) 117

1100(125)

1335(150)

1780(200)

2225(250)

2670(300)

3115(350)

4.1/2 114.30
CD 123-( ) 123 4 3/4 120.65
CD 130-( ) 130 5 127.00
CD143-( ) 143 5.1/2 139.70
CD149-( ) 149 5 3/4 146.05
CD156-( ) 156 6 152.40
CD171-( ) 171 6.5/8 168.28
CD181-( ) 181 7 177.80
CD198-( ) 198 7.5/8 193.68
CD201-( ) 201 7.3/4 196.85
CD223-( ) 223 8.5/8 219.80
CD233-( ) 233 9 228.60
CD248-( ) 248 9.5/8 244.48
CD255-( ) 255 9.7/8 250.83
CD278-( ) 278 10.3/4 273.05
CD303-( ) 303   298.45
CD332-( ) 332 12.7/8 327.03
CD245-( ) 245 13.3/8 339.73
CD351-( ) 351 13.5/8 346.08
CD361-( ) 361 14 355.60
CD412-( ) 412 16 406.40
CD464-( ) 464 18 457.20
CD479-( ) 479 18.5/8 473.08
CD515-( ) 515 20 508.00
CD553-( ) 553 21.1/2 546.10
CD566-( ) 566 22 558.80
CD618-( ) 618 24 609.60
CD630-( ) 630 24.1/2 622.30
CD669-( ) 669 26 660.40
CD695-( ) 695 27 685.80
CD720-( ) 720 28 711.20
CD772-( ) 772 30 762.00
CD823-( ) 823 32 812.80
CD926-( ) 926 36 914.40
