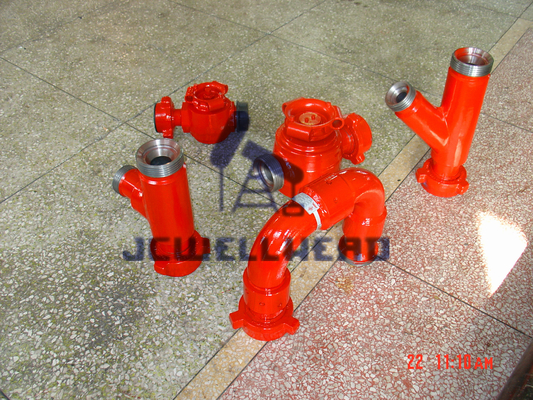

API Elbows Wellhead Integral Fittings With Union Y Type Lateral

API Elbows Wellhead Integral Fittings With Union Y Type Lateral
API Elbows Wellhead Integral Fittings With Union Y Type Lateral API Elbows Wellhead Integral Fittings With Union Y Type Lateral

Large Image :  API Elbows Wellhead Integral Fittings With Union Y Type Lateral

Product Details:
Place of Origin: China
Brand Name: JC Wellhead
Certification: API 6A
Model Number: 3" x Fig 1502
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Polywood case for land, air, ocean shipment
Delivery Time: 30-45 days
Payment Terms: T/T, L/C, D/P
Supply Ability: 300 sets / month

API Elbows Wellhead Integral Fittings With Union Y Type Lateral

Description
Application: Wellhead Integral Fittings Usage: Wellhead Flow Control Connection
Material: AISI 4130 Forging Production Level: PLS 3
Production Level: PR2 Standard: API 6A
Product Name: High Pressure Integral Tee Working Pressure: 15000psi
Size: 3" Working Condiction: Standard Serive Or Sour Service
Highlight:

API Elbows Wellhead Integral Fittings

,

Y Type Lateral Wellhead Fittings

,

Integral Tee Wellhead Fittings

API Wellhead Integral Fittings Elbows with Union Y Type Lateral​



The integral fittings are used for high pressure fluid control. The Elbow and Y type Lateral are the types of the wellhead integral fitting. The Elbow and Lateral  are made of forged high strength alloy steel for high-pressure discharge lines, water lines, temporary flow lines, well testing lines, cementing and circulating lines, and other high-pressure applications, in size 1", 2" and 3”, and available in pressure ratings from 2,000 psi to 20,000 psi in standard or sour gas service.



The High Pressure Integral Fittings are featured with detachable wing union end connections for a high-strength, high-integrity connection. Tees, elbows, crosses, and wyes can be combined to suit any installation.


Specification of  Wellhead Fittings



Elbow



Nominal
Size
End Connections Working Pressure
Mpa/Psi
Dimensions(mm) Service
A B
2 FIG1502 FXM 105/15000 154 154 Standard
2" FIG1502 FXF 105/15000 154 154 Standard
2 FIG1502 MXM 105/15000 154 154 Standard
FIG1502 FXM 105/15000 214 214 Standard
FIG1502 FXF 105/15000 214 214 Standard
3" FIG1502 MXM 105/15000 214 214 Standard
FIG2002 FXM 140/20000 257 257 Standard

API Elbows Wellhead Integral Fittings With Union Y Type Lateral 0

Lateral





Nominal
Size
End Connections Working Pressure
Mpa/Psi
Dimensions(mm) Service
  A B
2" FIG1502 MXFXF 105/15000 400 250 Standard
2" FIG1502 MXFXM 105/15000 400 250 Standard
2" FIG1502 FXFXF 105/15000 400 250 Standard
3" FIG1502 MXFXF 105/15000 533 355 Standard
3" FIG1502 MXFXM 105/15000 533 355

Standard





API Elbows Wellhead Integral Fittings With Union Y Type Lateral 1


About JC Wellhead



Jingcheng Petroleum Machinery Manufacturing Co.,Ltd was established in 2008, we are specialized in design and manufacturing of the oilfield wellhead equipment. We - YCJC are a registered supplier for CNPC, GWDC, CCDC in China.



In 2012, JC wellhead jointed with ZZ TOP Oil Tools, and found the office in Xi'an mainly engaged in abroad marketing, through these years of efforts, our wellhead equipment is exported to many countries, such as Thailand, UAE, Iran, Brazil, Argentina, USA etc. and enjoyed good reputation from the customers.



YCJC will constantly insist on the innovation of products, technologies and system and strive for providing the excellent products and services for our customers. We are sincerely welcome you to work together.



API Elbows Wellhead Integral Fittings With Union Y Type Lateral 2API Elbows Wellhead Integral Fittings With Union Y Type Lateral 3
