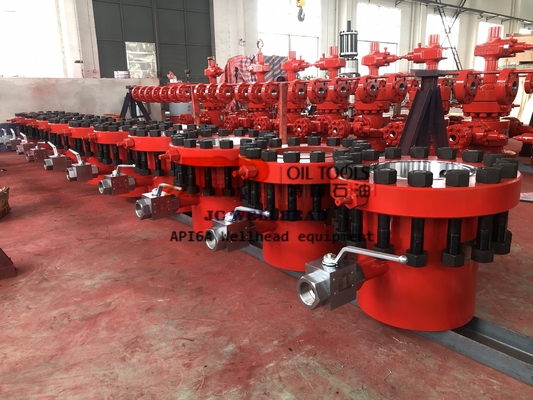

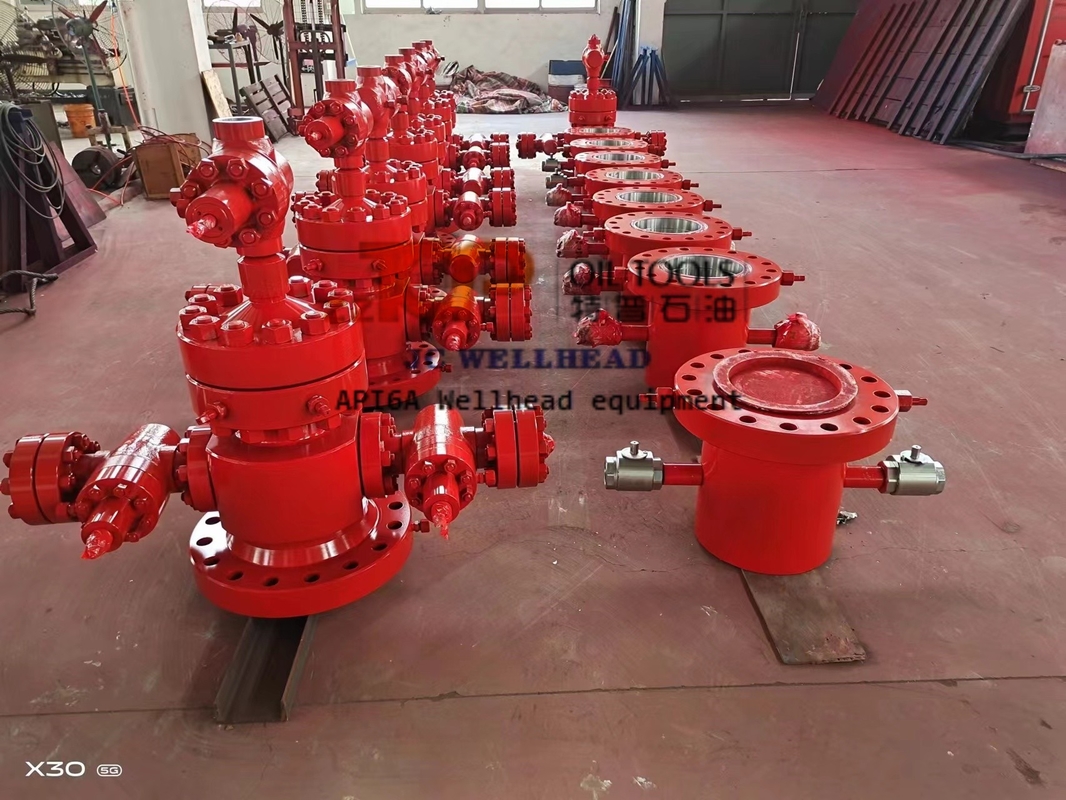

API 6A Casing Head Suitable For Oil Gas Well Drilling Operation

API 6A Casing Head Suitable For Oil Gas Well Drilling Operation
API 6A Casing Head Suitable For Oil Gas Well Drilling Operation API 6A Casing Head Suitable For Oil Gas Well Drilling Operation

Large Image :  API 6A Casing Head Suitable For Oil Gas Well Drilling Operation

Product Details:
Place of Origin: CHINA
Brand Name: ZZ TOP OIL TOOLS
Model Number: casing head

API 6A Casing Head Suitable For Oil Gas Well Drilling Operation

Description
Surface Treatment: Painting Flange Connection: Welded
Material: Alloy Steel Flange Material: Alloy Steel
Size: 36”X 13-3/8”X 9 5/8" Flange Rating: 2000psi
Standard: API 6A Flange Type: Weld Neck
High Light:

Painting Wellhead Casing Head

,

API 6A Casing Head

,

Gas Well Drilling Casing Head

Product Description:

Wellhead Casing Head is a high pressure-rated casing hanger housing designed to support and hang the casing string in a well. It is rated up to 2000psi and is available in API thread type and 13 3/8" flange connection with welded and painted surface treatments. It is a robust and reliable casing hanger housing that provides an excellent seal to the wellhead and is ideal for high-pressure applications. The wellhead casing head is designed to provide superior performance and reliability, ensuring a safe and secure seal for the wellhead. It is made from high quality materials and is designed to withstand extreme conditions. It is an effective and efficient casing hanger housing that helps to keep the wellhead safe and secure.



Features:

  • Product Name: Wellhead Casing Head
  • Flange Material: Alloy Steel
  • Thread Type: API
  • Flange Standard: API 6A
  • Flange Surface Treatment: Painting
  • Flange Connection: Welded


Technical Parameters:

1 EQUIPMENT - 5Kpsi SPLITTER WELLHEADS ( (2 IN 1) wellhead systems for 36”X 13-3/8”X 9 5/8 Casing scheme and 4 ½” (Single String Completion System)
1.1 LOWER HOUSING
36" CSW 2. IN 1., 36" SLIPLOCK BTM, C/W DBL "WQ" SEALS, W/ 20" NOM. 2,000 PSI WP 'D' SHAPED STUDDED TOP PROFILE W/ TWO 20" NOM. HANGER BOWL PREP. (20.500" CENTERS) FOR 13-3/8" O.D. CSG AND TWO 2" LP SIDE OUTLETS AND TWO 2" LP MONITOR PORTS COMPLETE WITH BULL PLUG AND 1/2" BLEEDER PLUG
1.2 CASING HANGER 20" X 13.3/8"
BODY, FLUTED MANDREL CASING HANGER, 20IN NOM.3000 PSI, 13-3/8IN 68 LB/FT TSH BLUE BOX THD BTM X16.500-2TPI LH STUB ACME THD TOP, W/ 13-3/8IN OD SLICKNECK AND FOUR FLOW-BY SLOTS; MIN BORE: 12.360INAPI 6A; PSL-2; M/C: DD-NL; T/C: S,T,U,VBODY MATERIAL: 4140 LAS, 80KSI YS
1.3 COMPACT SPOOL ASSEMBLY
13-5/8 NOM, TYPE 'SSMC' TWO STAGE, 20 NOM. OEC 2000 PSI PSI 'D' SHAPED FLANGE BTM. W/ 13-3/8 DOUBLE 'T' SEAL BTM. X 13-5/8 NOM. API 5000 PSI 'JB' TOP CONNECTION W/ 13-5/8 'SRL' SEAL PREP TOP
1.4 TEMPORARY ABANDONMENT CAP
20 NOM 'D-SHAPED' FLANGE BTM W/13-3/8 DBL 'T' SEAL AND DBL O-RING SEAL OD. (2,000 PSI MAX WP), COMPLETED W/ 2" LP BULL PLUG & 1/2 NPT BLEEDER PLUG. API 6A 21ST EDITION, PSL 2, T/C: U, M/C: DD-NL;BODY MAT'L: AISI 4130 75 KSI YS.
1.5 CASING HANGER 13.5/8" X 9.5/8"
CSG HGR, 13-5/8 NOM X 9-5/8 47PPFT TENARIS BLUE BOX THD BTM X 11.500 2TPI LEFT HAND STUB ACME THD TOP W/SLICK NECK FOR SEALS; RATED WORKING PRESSURE: 6,500 PSI; API 6A 21ST ED; M/C:AA,DD-NL; T/C:U; PSL-3; PR2; GROUP 1; MIN BORE: 8.647
1.6 TUBING HANGER 13.5/8" X 4.1/2"
ASSEMBLY, TUBING HANGER, TYPE 'SSMC', 13-5/8" NOM, W/ TWO 'LS' SEALS X 4-1/2" 12.6 LB/FT  TOP BOX THD BTM, 6-1/16" EXTENDED SLICK NECK TOP W/ 6.375"-4-STUB ACME RIGHT HAND RUNNING THREAD, PREPARED WITH 4" NOM TYPE 'H' BPV PROFILE, W/ FIVE 1/4" CONTINUOUS CONTROL LINE C/W PIPE PLUGS. 3.90" MIN. BORE; API 6A 21ST EDITION, MATERIAL CLASS: EE-1.5, FF-1.5, TEMPERATURE RATING: U, PSL-2, PR-2, BODY MAT'L: SS 410 80K YS



API 6A Casing Head Suitable For Oil Gas Well Drilling Operation 0





Applications:

ZZ TOP OIL TOOLS is providing casing head housing with Model Number: casing head. It is made in CHINA with the Pressure Rating of 2000psi, and the flange connection is welded. The thread type of this product is API, and the connection is flanged. The flange type of this product is Weld Neck, which is well-known for its excellent strength and durability. This product is one of the most important components in oil and gas industry, and it is suitable for API 6A application. This casing head housing is capable of providing a reliable and secure connection of casing hanger and casing head spool, and it is a perfect choice for any oil and gas project.



Support and Services:

Wellhead Casing Head Technical Support and Service
  • Provide technical support to customers in the selection, installation, and maintenance of Wellhead Casing Head products.
  • Provide on-site technical service for the installation and commissioning of Wellhead Casing Head products.
  • Offer professional advice and guidance for customers in the use and maintenance of Wellhead Casing Head products.
  • Provide after-sales service to customers with problems regarding Wellhead Casing Head products.
  • Supply spare parts and accessories for Wellhead Casing Head products.


FAQ:

Q1: What is Wellhead Casing Head?
A1: Wellhead Casing Head is a device used to connect the wellhead and the casing string. It's Brand Name is ZZ TOP OIL TOOLS,Model Number is casing head,Place of Origin is CHINA.
Q2: What are the main functions of Wellhead Casing Head?
A2: The main functions of Wellhead Casing Head are to hang the casing string, support the casing string, seal the annulus space between casing and wellbore, and provide the pressure resistance of wellhead and casing string.
Q3: What materials are used for the Wellhead Casing Head?
A3: The Wellhead Casing Head is made of high-strength alloy steel or stainless steel.
Q4: What is the working pressure of Wellhead Casing Head?
A4: The working pressure of Wellhead Casing Head is up to 200Mpa.
Q5: What are the advantages of Wellhead Casing Head?
A5: Wellhead Casing Head has the advantages of strong pressure resistance, good sealing performance, high strength, convenient installation and maintenance, etc.
