900 Series Wellhead Christmas Tree Dual Wing Xmas Tree With 5 1/2" Casing Seal

Certification
China XI‘AN ZZTOP OIL TOOLS CO.,LTD certification
China XI‘AN ZZTOP OIL TOOLS CO.,LTD certification
Customer Reviews
Great Job for providing qualifed equipment to us, Very impressive. My honor to work with your guys.

—— Akri Andreas

Hope the relationship can last stronger and stronger. Appreciate your valuble works.

—— Omar Rashid

My reliable partner, thanks for your support in last years, let us move next step... Good luck.

—— Pradeep Abraham

I'm Online Chat Now

900 Series Wellhead Christmas Tree Dual Wing Xmas Tree With 5 1/2" Casing Seal

900 Series Wellhead Christmas Tree Dual Wing Xmas Tree With 5 1/2" Casing Seal

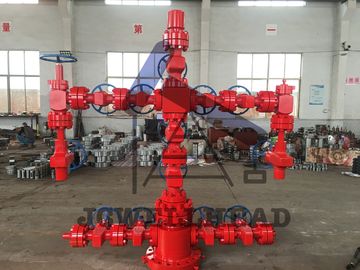

900 Series Wellhead Christmas Tree Dual Wing Xmas Tree With 5 1/2" Casing Seal 900 Series Wellhead Christmas Tree Dual Wing Xmas Tree With 5 1/2" Casing Seal

Large Image :  900 Series Wellhead Christmas Tree Dual Wing Xmas Tree With 5 1/2" Casing Seal

Product Details:
Place of Origin: China
Brand Name: JC Wellhead
Certification: API 6A
Model Number: 900 SERIES DUAL WING WELLHEAD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable

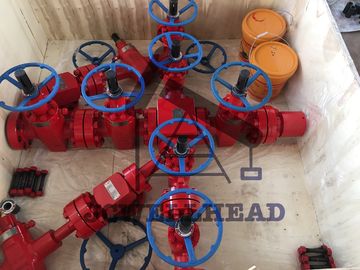

Packaging Details: Polywood case for land, air, ocean shipment
Delivery Time: 30-45 days
Payment Terms: T/T, L/C, D/P
Supply Ability: 10 sets / month

900 Series Wellhead Christmas Tree Dual Wing Xmas Tree With 5 1/2" Casing Seal

Description
Application: Oilfield Wellhead Equipment Usage: Oil Well Drilling Flow Control
Material: Class AA Production Level: PLS1
Temperature Class: U Standard: API 6A
Product Name: Xmas Tree Working Pressure: 3000 Psi
Type: Dual Wing Wellhead Christmas Tree Process Type: Forging
Highlight:

oil well xmas tree

,

production tree oil and gas

API 6A Wellhead Christmas Tree Dual Wing X-Tree 3000 Psi Working Pressure



The Christmas Tree is the upper surface equipment system attached to the wellhead below. Generally installed as a unit, immediately after production tubing is suspended.

It is an assembly of equipment, including tubing head adapters, valves, tees or crosses, top connectors and chokes attached to the uppermost connection of the tubing head, used to control well production.

The Christmas tree provides a means to control the flow of produced fluids coming up the well. It may also be used to control the flow of fluids injected into the well.

Christmas tree and its components must be designed to meet the minimum safety criteria; and their design should comply with internationally recognized standards such as API 6A, ISO 9000, ISO 10423.

The X-Mas Tree has various type base on different applications, i.e. single wing, double wing and so on. Normally the X-Mas tree is composed by Tubing Head Spool adapter, Master Valves, Wing valves, Crown valves, Positive and Adjustable choke valve and Tree cap.



General Technical of the Wellhead Christmas tree



Working pressure (psi) 2M, 3M, 5M, 10M, 15M, 20K
Material class AA, BB, CC, DD, EE, FF
Working temp. L, P, R, S, T, U, V
Product Specification Level PSL1, PSL2, PSL3, PSL4
Performance Requirement level PR1, PR2
Master bore (in) 2-1/16, 2-9/16, 3-1/16(3-1/8), 4-1/16
Pass-by bore (in) 2-1/16, 2-9/16, 3-1/16(3-1/8), 4-1/16





No. Description Qty Unit
  DUAL WING WELLHEAD CHRISTMAS TREE FOR STANDARD SERVICE TO SUPPLY WITH THE FOLLOWING EQUIPMENT, SPARES AND ACCESSORIES. API SPECIFICATION 6A, LATEST EDITION.
MATERIAL CLASS: AA, PSL 1, PR2, TEMPERATURE CLASS: U COMPLETE SET OF 900 SERIES DUAL WING WELLHEAD FOR (2) SETS CONSISTING OF THE FOLLOWING COMPONENTS:
II Adapter Flange
1 TOP 2 9/16" X 3000 PSI STUDDED AND BOTTOM 7-1/16" X 3000 PSI (Adapter Flange) 2 Nos
2 RING JOINT GASKET R-27 FOR TOP FLANGE 2-9/16" X 3000 PSI 2 Nos
3 STUD BOLT WITH ONE NUT 1" DIA X 7"LONG 16 set
III Master Valve
1 2 9/16" X 3000 PSI WP API FLANGE ENDS FULL ROUND OPENING GATE VALVE C/W HAND WHEELS 4 Nos
2 RING JOINT GASKET R-27 2 Nos
3 STUD BOLT WITH 2 NUTS 1" DIA X 7"LONG 16 set
IV. Forge Steel Cross
1 2 9/16" VERTICAL X 2 1/16" OUTLETS X 3000 # WP STUDDED STEEL CROSS C/W NUTS 2 Nos
2 RING JOINT GASKET R-27 FOR 2 9/16" VERTICAL OUTLETS 4 Nos
3 RING JOINT GASKET R-24 FOR 2 1/16" SIDE OUTLETS 4 Nos
4 STUD BOLT WITH ONE NUT 1" DIA X 7" LONG FOR VERTICAL OUTLETS 32 set
5 STUD BOLT WITH ONE NUT 7/8" DIA X 6 1/4" LONG FOR SIDE OUTLETS 32 set
V. SWAB Valve
  (a) 2 9/16" X 3000 PSI # FLANGE TYPE GATE VALVE, FULL ROUND OPENING, COMPLETE WITH HAND WHEEL 2 Nos
  STUD BOLT WITH TWO NUTS 1" DIA X 7" LON 16 set
  R-27 RING JOINT GASKET FOR SWAB VALVE 2 Nos
  2 9/16" X 3000 # FLANGE TYPE TREE CAP WITH TOP CONNECTION 5 3/4", 4 TPI ACME( 4.75" SEAL DIA ) OTIS MALE FOR SCHL ( WHE ) INSTALLATION & 8 TPI EUE THREAD INSIDE FOR SWABBING LINE INSTALLATION 2 set
VI. Wing Valves
1 2 1/16" X 3000 PSI # FLANGE TYPE GATE VALVE, FULL ROUND OPENING, COMPLETE WITH HAND WHEEL 8 NOs
2 R-24 RING GASKET 12 NOs
3 STUD BOLT WITH 2 NUTS 7/8" DIA X 6-1/4" LONG 96 set
4 POSITIVE CHOKE 2-1/16 X 3000# WP FLANGES INLET AND OUTLET I" MAX ORIFICE, WITH BLANKING PLUG X TAPPED 1/2" NPT AND PLUG 2 set
5 ADJUSTABLE CHOKE, 2 1/16" X 3000 # WP FLANGED INLET AND OUTLET, 1" MAX ORIFICE, WITH TUNGSTEN CARBIDED STEM AND SEAT, COMPLETE WITH HAND WHEELS 2 set
6 LONG FLOW BEAN POSITIVE CHOKE SET OF
6/64 8/64", 10/64", 12/64", 14/64", 16/64", 18/64", 20/64", 22/64", 24/64", 26/64", 28/64", 30/64", 32/64", 34/64", 36/64", 38/64", 40/64", 42/64", 44/64", 46/64", 48/64" 2 set
7 2 1/16" X 3000# WP LINE PIPE THREADED COMPANION FLANGE 4 Nos
8 2" X 6" (3000# ) LINE PIPE THREADED NIPPLE 4 Nos
9 2 1/16" X CLASS 800 LB ANSI SCREWED TYPE GATE VALVE ( NON API VALVE )
 FULL ROUND OPENING, C/W HAND WHEEL (TO INSTALL DOWN STREAM OF
CHOKE ON EACH WING) 4 Nos



900 Series Wellhead Christmas Tree Dual Wing Xmas Tree With 5 1/2" Casing Seal 0





About JC petroleum equipment factory



JC Petroleum Equipment Factory manufactures and supplier the various wellhead manifold and related parts to meet different requirement in oilfield service operation. The wellhead manifolds are conformed with API 6A and API16C specification, and applied for high pressure and high  temperature working condition.



With profession engineers we also offer the R&D service to the clients who have special requirements in the oilfield drilling operation and production operation.Yancheng Jing Cheng Petroleum Machinery Manufacturing Co,Ltd is engaged in manufacture and supply wellhead equipment include wellhead -Tree, casing head, casing hanger, tubing head, tubing hanger, casing spool, tubing spool, Gate valve, Adjustable Choke valve, Positive Choke Valve, Check valve,VR plug,Running tool, Wear bushing, spacer spool, riser spool adapter, union flange adapter, flange adapter, union flange, Hammer union, Elbow, swivel joint, block cross, Block Tee, companion flange, instrument flange, weldneck flange, FC gate, FC seat, FC stem, API Clamp, API Clamp Hub and various high pressure manifold such as choke manifold, kill manifold, drilling floor manifold, surface testing manifold etc
