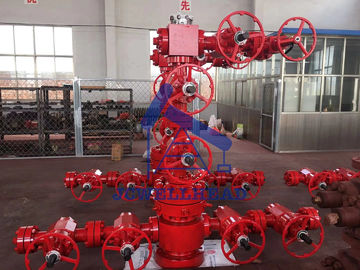

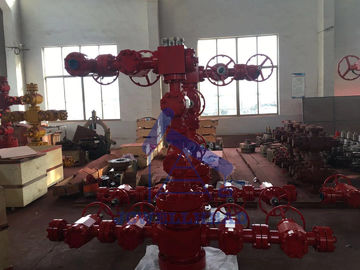

Oil Well Flow Control Gas Well Christmas Tree 3000 Psi Pressure API 6A Standard

Oil Well Flow Control Gas Well Christmas Tree 3000 Psi Pressure API 6A Standard
Oil Well Flow Control Gas Well Christmas Tree 3000 Psi Pressure API 6A Standard Oil Well Flow Control Gas Well Christmas Tree 3000 Psi Pressure API 6A Standard

Large Image :  Oil Well Flow Control Gas Well Christmas Tree 3000 Psi Pressure API 6A Standard

Product Details:
Place of Origin: China
Brand Name: JC Wellhead
Certification: API 6A
Model Number: 11" X 3000 psi x 7-1/16" X 3000 psi
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Polywood case for land, air, ocean shipment
Delivery Time: 30-45 days
Payment Terms: T/T, L/C, D/P
Supply Ability: 100 sets / month

Oil Well Flow Control Gas Well Christmas Tree 3000 Psi Pressure API 6A Standard

Description
Application: Oil&Gas Well Production Operation Usage: Oil Well Flow Control
Material Class: AA Production Level: PLS 3
Temperature Class: U Standard: API 6A
Product Name: Wellhead X-mas Tree With Tubing Head Working Pressure: 3000 Psi
Specification: Tubing Spool 11" X 3000 Psi X 7-1/16" X 3000 Psi
Highlight:

oil well xmas tree

,

production tree oil and gas

API6A Wellhead And Xmas Tree For Oil & Gas Well Flow Control 3000 Psi Pressure



The Wellhead Christmas Tree is designed and manufactured in accordance with API 6A specification. The wellhead X-tree is assembled with a series of valves such as Gate Valve, SWAB Valve and Choke Valve, various spools and adapter flanges fitted on top of the well. The wellhead Christmas tree with tubing head is applied for controlling the well pressure during oil well production operation, drilling operaton, drill stem testing operation and fracturing operation.The wellhead x-tree is used for extracting two oil reservoir at the same time and also independently, which allows put down two tubings into the same casing. Can seal the different two oil reservoir with dual packer and single packer.



Technical parameter of wellhead X-tree



Working medium oil,natural gas,mud and gas containing H2S,CO2
Working Pressure 2,000psi – 20,000psi
Material Class AA - FF
Working Temperature -46°C~121°C(Class LU)
PSL 1 - 4
PR 1 - 2



Specification of Ordered Wellhead X-tree and tubing head



No. Description Qty Unit
  900 SERIES (WP-3000 PSIG) WELL HEAD EQUIPMENT (DUAL WING) FOR STANDARD SERVICE TO SUPPLY WITH THE FOLLOWING EQUIPMENT, SPARES AND ACCESSORIES. API SPECIFICATION 6A, LATEST EDITION.
MATERIAL CLASS: AA, PSL 1, PR2, TEMPERATURE CLASS: U COMPLETE SET OF 900 SERIES DUAL WING WELLHEAD FOR (2) SETS CONSISTING OF THE FOLLOWING COMPONENTS: 1 set
1 Tubing Spool
(a) BOTTOM FLANGE 11" X 3000 # BY TOP FLANGE 7-1/16" X 3000 # AND BOTTOM MUST BE PREPARED TO BE APPLICABLE EITHER FOR 7" CASING OR 5 1/2" CASING.TUBING SPOOL IS TO BE FURNISHED WITH 2 STUDED SIDETO BE FURNISHED WITH TIE-DOWN SCREWS FOR TUBING HANGER CONE .OUTLETS FOR 2-1/16"X 3000 PSI FLANGE TYPE GATE VALVES. TOP FLANGE BOTTOM PREPARED WITH DOUBLE " P" SEALS FOR 5 1/2" CASING INCLUDING ALLEN WRENCH AND PLASTIC PACKIN 1 set
(b) Bit Guide 1 No
(c) Casing seal for 5 1/2” Casing 1 No
(d) Plastic packing stick for 5 1/2” Ex Type Bushing 10 Nos
(e) TUBING HANGER FOR ABOVE SPOOL WITH 2-7/8" EUE, 8 TPI ROUND API TOP AND BOTTOM 1 No
(f) RING GASKET, R-53 FOR 11" X 3000# WP FLANGE ( BOTTOM ) 1 No
(g) STUD BOLT WITH TWO NUTS 1 3/8" DIA X 10 3/4" LONG FOR BOTTOM FLANGE 12 Nos
(k) 2 1/16" X 3000# FLANGE TYPE GATE VALVE, FULL ROUND OPENING, C/W HAND WHEELS 4 Nos
(n) COMPANION FLANGE 2 1/16" X 3000 # WP X 2" LINE PIPE THREAD 2 Nos
(o) 2" LINE PIPE THREADED SOLID BULL PLUG(3000#) 1 No
(p) 2" LINE PIPE THREADED BULL PLUG , TAPPED WITH 1/4" NPT HOLE (3000#) 1 No
(q) 2 3/8" X 2 7/8" EUE CHANGE NIPPLE ( ID MUST BE LARGE ENOUGH SO THAT 2 3/8" SWAB CUP ( OD=1.92" ) MAY PASS THROUGH INSIDE
2 3/8" X 2 7/8" CHANGE NIPPLE (3000#) 1 No
2 Adapter Flange
(a) TOP 2 9/16" X 3000 PSI STUDDED AND BOTTOM 7-1/16" X 3000 PSI (Adapter Flange) 1 No
(b) RING JOINT GASKET R-27 FOR TOP FLANGE 2-9/16" X 3000 PSI 1 No
(c) STUD BOLT WITH ONE NUT 1" DIA X 7"LONG 8 set
3 Master Valve
(a) 2 9/16" X 3000 PSI WP API FLANGE ENDS FULL ROUND OPENING GATE VALVE C/W HAND WHEELS 2 Nos
(b) RING JOINT GASKET R-27 1 No
(c) STUD BOLT WITH 2 NUTS 1" DIA X 7"LONG 8 set
4 Forge Steel Cross
(a) 2 9/16" VERTICAL X 2 1/16" OUTLETS X 3000 # WP STUDDED STEEL CROSS C/W NUTS 1 Nos
(b) RING JOINT GASKET R-27 FOR 2 9/16" VERTICAL OUTLETS 2 Nos
5 SWAB Valve
(a) (a) 2 9/16" X 3000 PSI # FLANGE TYPE GATE VALVE, FULL ROUND OPENING, COMPLETE WITH HAND WHEEL 1 Nos
(b) STUD BOLT WITH TWO NUTS 1" DIA X 7" LON 8 set
(c) R-27 RING JOINT GASKET FOR SWAB VALVE 1 Nos
(d) 2 9/16" X 3000 # FLANGE TYPE TREE CAP WITH TOP CONNECTION 5 3/4", 4 TPI ACME( 4.75" SEAL DIA ) OTIS MALE FOR SCHL ( WHE ) INSTALLATION & 8 TPI EUE THREAD INSIDE FOR SWABBING LINE INSTALLATION 1 set
6 Wing Valves
(a) 2 1/16" X 3000 PSI # FLANGE TYPE GATE VALVE, FULL ROUND OPENING, COMPLETE WITH HAND WHEEL 4 NOs
(b) R-24 RING GASKET 6 NOs
(c) STUD BOLT WITH 2 NUTS 7/8" DIA X 6-1/4" LONG 48 set
(d) POSITIVE CHOKE 2-1/16 X 3000# WP FLANGES INLET AND OUTLET I" MAX ORIFICE, WITH BLANKING PLUG X TAPPED 1/2" NPT AND PLUG 1 set
(e) ADJUSTABLE CHOKE, 2 1/16" X 3000 # WP FLANGED INLET AND OUTLET, 1" MAX ORIFICE, WITH TUNGSTEN CARBIDED STEM AND SEAT, COMPLETE WITH HAND WHEELS 1 set
(f) LONG FLOW BEAN POSITIVE CHOKE SET OF 8/64", 10/64", 12/64", 14/64", 16/64", 18/64", 20/64", 22/64", 24/64", 26/64", 28/64", 30/64", 32/64", 34/64", 36/64", 38/64", 40/64", 42/64", 44/64", 46/64", 48/64" 1 set
(g) 2 1/16" X 3000# WP LINE PIPE THREADED COMPANION FLANGE 2 Nos
(h) 2" X 6" (3000# ) LINE PIPE THREADED NIPPLE 2 Nos
(i) 2 1/16" X CLASS 800 LB ANSI SCREWED TYPE GATE VALVE ( NON API VALVE )
 FULL ROUND OPENING, C/W HAND WHEEL (TO INSTALL DOWN STREAM OF
CHOKE ON EACH WING) 2 Nos
