Product Details:
|
| Application: | Well Pressure Control | Usage: | Oilfield Well Production Service |
|---|---|---|---|
| Material Class: | AISI 4130 Forging | Production Level: | PLS 3 |
| Type: | RAM BOP | Standard: | API 16A & NACE MR0175 |
| System Working Pressure: | 3000 Psi | Product Name: | Polish Rod BOP |
| Nominal Bore: | 2 7/8” | Connection: | EUE Box -Pin |
| High Light: | Pressure Control Sucker Rod BOP,Oil Gas Well Blowout Preventer,Oil Well Sucker Rod BOP |
||
Feature
* The Sucker Rod / Polish Rod BOP is designed with simple structure for convenient operation and maintaince.
* The sealing of rod BOP is more reliable
* With long service life
* The sucker rod BOP is indispensable tool in oil field work.

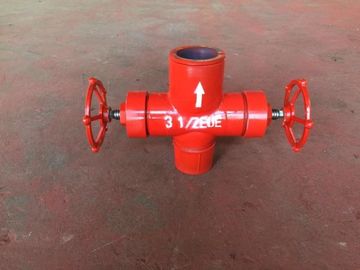

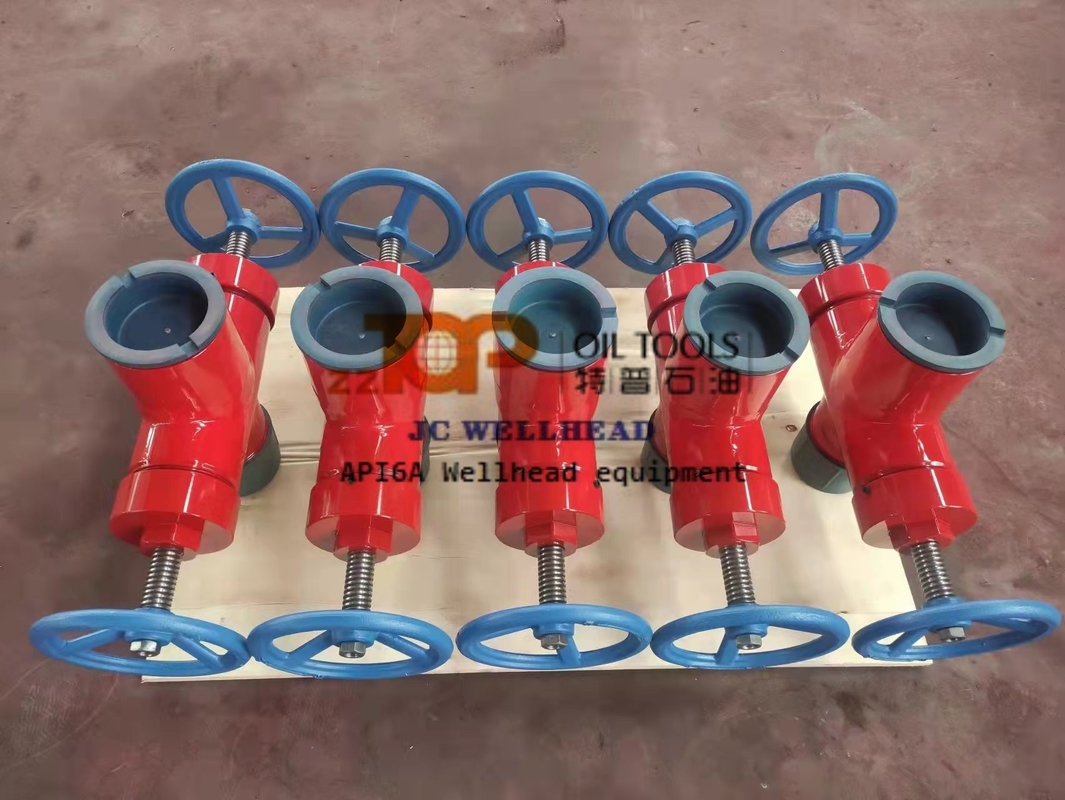

Specification of Sucker Rod BOP
| Blowout Preventer 2-7/8" 3000PSI | |
| MATERIAL | CARBON STEEL |
| CONNECTION | MALE/FEMALE |
| DIE | 1-1/4" FOR PREVENT |
| POLISHED STEM SIZE | 1-1/4" |
| SPARK GAUGE SIZE | 2-7/8" |
| PRESSURE | 3000PSI |
| CONNECTING THREAD | -2-7/8" EUE (SHUT-DOWN) |
* More specification are available according to customers' requirement.
About ZZ TOP Oil Tools
Jingcheng Petroleum Machinery Manufacturing Co.,Ltd was established in 2008, specialized in design and manufacturing of the oilfield wellhead equipment. From 2008 till now, YCJC is a registered supplier for CNPC, GWDC, CCDC in China to provide all kinds of oilfield wellhead equipment.
In 2012, YCJC under the brand JC WELLHEAD jointed with ZZ TOP Oil Tools to establish an office in Xi'an engaging in abroad marketing,
through these years of efforts, our wellhead equipment is exported to worldwide and enjoyed good reputation from the customers.
Product scope
| Wellhead valves | Gate Valves, Plug Valves, Choke Valves, Check Valves, Mud Valves and various wellhead valve parts etc. |
| Wellhead Manifold | Choke and Kill Manifold, Drilling Floor Manifold, Fracturing manifold, Well Testing Manifold. |
| Wellhead Equipment | Wellhead Christmas Tree / XTree, Casing Head, Casing Hanger, Tubing Head,Tubing Hanger, Casing Spool, Tubing Spool, Drilling Spool etc. |
| Wellhead Adapter | Spacer Spool / Riser Spool ,Flange Adapter, Union Flange, Double Studded Adapter Flange, Welded Neck Flange, Blind Flange,Companion Flange, Instrument Flange,Wellhead Clamp & Hub etc. |
| Wellhead Integral Fittings | Hammer Union, Elbow, Swivel Joint, Block Cross, Block Tee, Straight Pipe, Pipe Loops etc. |
| Well Control Equipment | Annular BOP, RAM BOP, Sucker Rod BOP, BOP Stack, Wireline BOP etc |
| Surface Well Testing Package | Surface Test Tree (Flowhead), Surface Safety Valve(SSV), ESD System, Data Header, Choke Manifold, Oil Diverter manifolds, Gas Diverter Manifold |
