Product Details:
|
| Application: | Oil Well Drilling Operation | Usage: | Oil Well Pressure Control |
|---|---|---|---|
| Material: | Class DD | Production Level: | PLS 2 |
| Temperature Class: | T | Standard: | API 16A |
| Product Name: | Double Ram BOP | Specification: | 13 5/8" X 5000 Psi |
| Type: | Type U Single BOP | ||
| High Light: | annular blowout preventer,oil well bop |
||

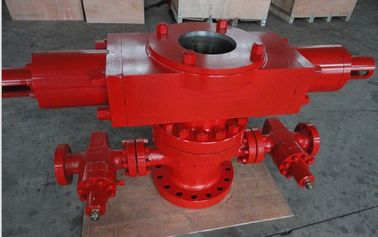

Well Control BOP API 16A Single RAM Blowout Preventer
The TYPE U Ram BOPs are designed and manufactured according to API Spec 16A standard, equipped with single or double rams from 7 1/16" to 21 1/4".The RAM BOP is shut in the well for oil testing, workover, well completion and operating process to prevent the blowout accident, totally enclosed and semi-closed two functions into one.
Features of RAM BOP
* The oil well RAM BOP has a simple structure,
* Easy to operate the RAM BOP
* Forged pressure-bearing components of RAM BOP for better strength and impact toughness
Dimensions of TYPE U Single Ram BOP
| Size (in.) | Working pressure(psi) | Vertical Path(in.) | A-1 (mm) | A-2 (mm) | B (mm) | C (mm) | Weight (Kg) |
| 7 1/16 | 3,000 | 7 1/16 | 1880 | 2780 | 611 | 515 | 1400 |
| 7 1/16 | 5,000 | 7 1/16 | 1880 | 2780 | 699 | 515 | 1500 |
| 7 1/16 | 10,000 | 7 1/16 | 2487 | 3363 | 1216 | 757 | 2150 |
| 7 1/16 | 15,000 | 7 1/16 | 2477 | 3273 | 832 | 768.8 | 2120 |
| 11 | 3,000 | 11 | 3105 | 4165 | 750 | 640 | 2406 |
| 11 | 5,000 | 11 | 3105 | 4165 | 898 | 648 | 4200 |
| 11 | 10,000 | 11 | 3200 | 4250 | 910 | 655 | 4300 |
| 11 | 15,000 | 11 | 3325 | 4413 | 1205 | 820 | 6725 |
| 13 5/8 | 3,000 | 13 5/8 | 3200 | 4356 | 795 | 743 | 3260 |
| 13 5/8 | 5,000 | 13 5/8 | 3627 | 4895 | 982 | 840 | 6540 |
| 13 5/8 | 10,000 | 13 5/8 | 3768 | 5046 | 1135 | 850 | 6640 |
| 13 5/8 | 15,000 | 13 5/8 | 3530 | 5460 | 1360 | 1000 | 10800 |
| 20 3/4 | 3,000 | 20 3/4 | 4120 | 5800 | 1030 | 1120 | 8100 |
| 21 1/4 | 3,000 | 21 1/4 | 4120 | 5800 | 940 | 1110 | 7600 |
A-1 : Length - the ram is closed and the locking shaft is locked up A-2: Width- excluding the bypass outlet
B: Height - Flange connection C: Valve plate chamber height
About JC Wellhead
Jingcheng Petroleum Machinery Manufacturing Co.,Ltd was established in 2008, we are specialized in design and manufacturing of the oilfield wellhead equipment. We - YCJC are a registered supplier for CNPC, GWDC, CCDC in China.
With profession engineers we also offer the R&D service to the clients who have special requirements in the oilfield drilling operation and production operation.The wellhead equipment we manufacture and supply include casing head, tubing head, casing spool, tubing spool, Gate valve, Choke valve, Check valve, X-mas tree, VR plug, Tubing hanger, casing hanger, Running tool, Wear bushing, spacer spool, flange adapter, union flange, Hammer union, Elbow, swivel joint, block cross, Block Tee, companion flange, instrument flange, weldneck flange, FC gate, FC seat, FC stem, API Clamp, API Clamp Hub
JC Wellhead's advantage:
* Strict quality control on raw material and machining, we can arrange the SGS or BV to witness the test
* We supply various wellhead products to meet the customers' operation.
* Timely delivery, professional service on export procedure,
* Product guarantee and best after-sales service.
