Product Details:
|
| Application: | Oil Well Drilling Operation | Usage: | Oil Well Pressure Control Equipment |
|---|---|---|---|
| Material: | Alloy Steel Forging | Production Level: | PLS 2 |
| Temperature Class: | T | Standard: | API 16A |
| Product Name: | Sucker Rod BOP | Specification: | 2 7 / 8" - 1500 Psi |
| High Light: | annular blowout preventer,oil well bop |
||

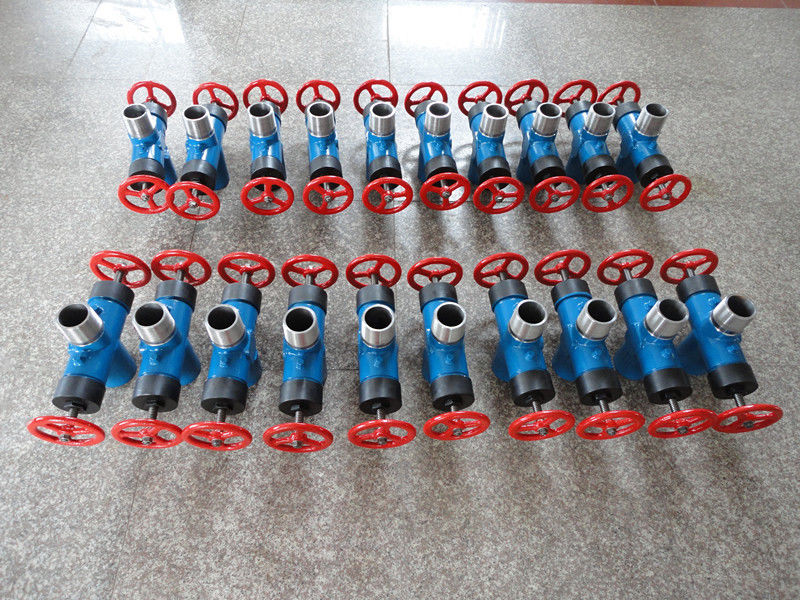

Oil Well Sucker Rod Blowout Preventer API 16A Polish Sucker Rod BOP
The sucker-rod pump Blowout preventer is designed as per API 16A for sealing of sucker-rod pump polished rod, wellhead sealing while stuffing box replacing, and for other repair work.
Polished sucker-rod pump Blowout preventor is designed for sealing of sucker-rod pump polished rod, wellhead sealing while stuffing box replacing, and for other repair work. Especially for well flooding or other natural disasters, sucker rod BOP can act for continuous well shutdown to avoid environmental pollution. Main pressure of our sucker rod BOP is 1500 or 2000 psi.
Specification of sucker rod BOP
| Sucker rod Specification | Structure | Material | Working Pressure | Working Tempreture | Connection |
| 1" (φ25) |
Single packed Double packed |
Carbon steel AISI 1018-1045 Alloy steel AISI 4130-4140 |
1500psi 2000psi 3000psi |
-20°C--200°C | NUE, EUE, LP |
| 1-1/8" (φ28) | |||||
| 1-1/4" (φ32) | |||||
| 1-1/2" (φ38) | |||||
|
1-3/4" (φ44) |
JC Wellhead's advantage:
* Strict quality control on raw material and machining, we can arrange the SGS or BV to witness the test
* We supply various wellhead products to meet the customers' operation.
* Timely delivery, professional service on export procedure,
* Product guarantee and best after-sales service.
With profession engineers we also offer the R&D service to the clients who have special requirements in the oilfield drilling operation and production operation.The wellhead equipment we manufacture and supply include casing head, tubing head, casing spool, tubing spool, Gate valve, Choke valve, Check valve, X-mas tree, VR plug, Tubing hanger, casing hanger, Running tool, Wear bushing, spacer spool, flange adapter, union flange, Hammer union, Elbow, swivel joint, block cross, Block Tee, companion flange, instrument flange, weldneck flange, FC gate, FC seat, FC stem, API Clamp, API Clamp Hub
Welcome to contact us for any inquiry or requirement!
