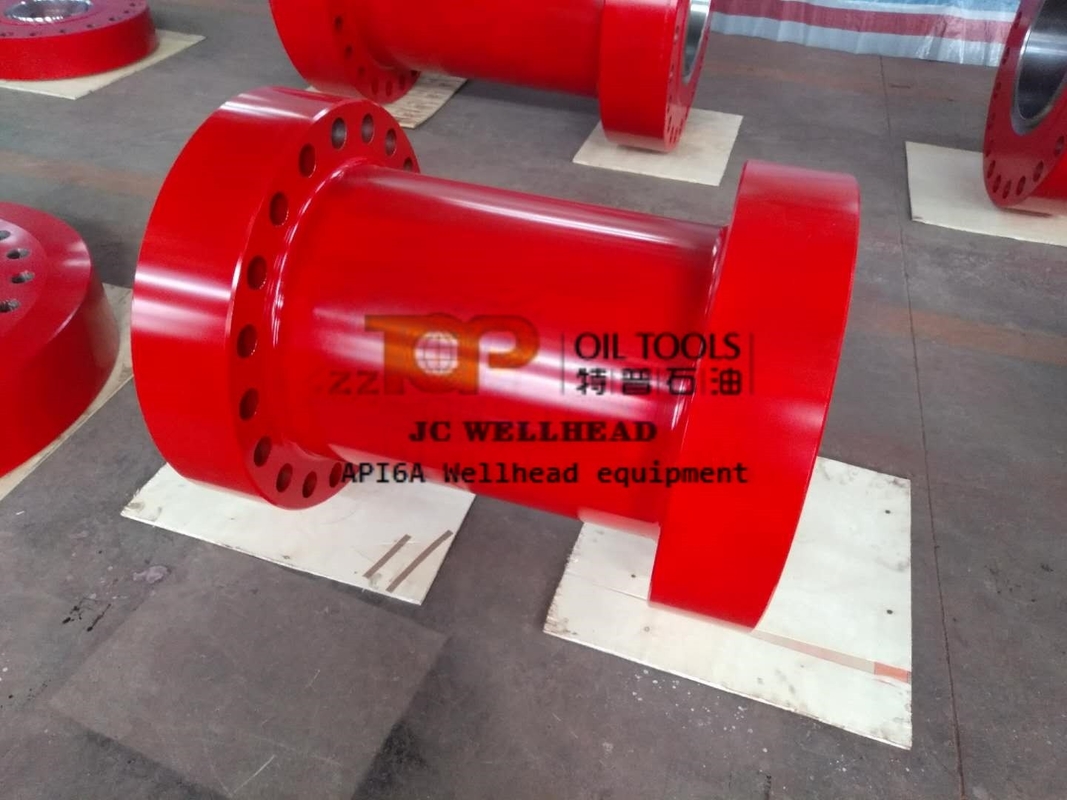

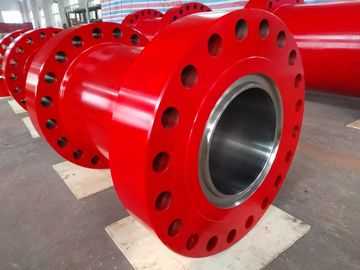

API 6A Integral Forged Riser Spool For Wellhead Equipment Connection

API 6A Integral Forged Riser Spool For Wellhead Equipment Connection
API 6A Integral Forged Riser Spool For Wellhead Equipment Connection API 6A Integral Forged Riser Spool For Wellhead Equipment Connection

Large Image :  API 6A Integral Forged Riser Spool For Wellhead Equipment Connection

Product Details:
Place of Origin: China
Brand Name: JC Wellhead
Certification: API 6A
Model Number: 11" x 11" Spool
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Polywood case for land, air, ocean shipment
Delivery Time: 30-45 days
Payment Terms: T/T, L/C, D/P
Supply Ability: 10 sets / month

API 6A Integral Forged Riser Spool For Wellhead Equipment Connection

Description
Application: Oil Well Drilling Operation Usage: Wellhead Equipment Connection
Temperature Class: T20 Standard: API 6A
Product Name: Riser Spool / Spacer Spool Specification: 11" X11"
Operated: Hydraulic Operated BOP Top Connection: Studded Flange
Bottom Connection: Studded Flange TYPE: Integral Forged
High Light:

Integral Forged Riser Spool

,

Wellhead Equipment Connection Riser Spool

,

Forged Wellhead Spool

API 6A Integral Forged Riser Spool For Wellhead Equipment Connection



The wellhead adapter spool is applied for Well Head extension, B.O.P. spacing, and Choke, Kill, and Production Manifold applications.  The Space Spool / Riser Spool is a sort of wellhead adapter spool and made of integral alloy steel forging, the wellhead adapter spool is designed and manufactured in accordance with API 6A, and have end connectors in same size or different size, rated working pressure. The spacer spool / riser spool is pressure-containing piece of equipment. As the part of wellhead equipment, the adapter spools have no provision for suspension of tubular member and for sealing of tubular members. The spacer spool provide separation between two components.The spacer spool usually has the same nominal end connections. The other kind of adapter spool has different size and pressure rating.



Specification of 11" x 11" Wellhead Spool



SN Description
1 Adaptors pool for 11"-5KX 11"-2K( Flange type)
Top:11"-2000PSI 6B R53 Flange
Bottom:11"-5000PSI 6B R54 Flanged
Outlets:2x31/8-5000PSI Flanged
Height=800mm;
NACE MR-0175; AP16A/API16A std;
includes STUDS, NUTS&RING GASKETS;
for 5KBOP
2 Adaptors pool for 11"-5KX 11"-3K( Flange type)
Top:11"-3000PSI 6B R53 Flange
Bottom:11"-5000PSI 6BR54
Flanged Outlets:2x31/8-5000PSI
Flanged Height=800mm;
NACE MR-0175; API6A/API16A std;
includes STUDS, NUTS&RING GASKETS;
For 5KBOP
3 Adaptors pool for 11"-3KX 11"-5K( Flange type)
Top:11"-5000PSI 6B R53 Flange
Bottom:11"-5000PSI 6B R54
FlangedOutlets:2x31/8-5000PSI Flanged
Height=800mm;
NACE MR-0175; API6A/API16A std;
includes STUDS, NUTS&RING GASKETS;
for 3KBOP
4 Adaptors pool for 11"-5KX 11"-3K( Flange type)Top:11"-3000PSI 6B R53 FlangeBottom:11"-5000PSI 6BR54 FlangedOutlets:2x31/8-5000PSI FlangedHeight=800mm; NACE MR-0175; API6A/API16A std; includes STUDS, NUTS&RING GASKETS; For 3KBOP
5 DOUBLE STUDDED ADAPTOR 11"3KX 11"2K; THICKNESS FOR THIS DSA-20CM;
includes STUDS, NUTS&RING GASKETS;
WITH TEST, COC CERTIFICATE AS PER API STANDARD API6A/API16A; NACE MR-0175
6 DOUBLE STUDDED ADAPTOR 11"5KX 11"3K; THICKNESS FOR THIS DSA-20CM;
includes STUDS, NUTS&RING GASKETS;
WITH TEST, COC CERTIFICATE AS PER API STANDARD API6A/API16A; NACE MR-0175



API 6A Integral Forged Riser Spool For Wellhead Equipment Connection 0




About ZZ TOP Oil Tools



ZZ TOP Oil Tools Co., Ltd, headquartered in Xi’an City, focused on the design and production of drill stem testing tools and wellhead equipment since 2010. With the business expanding, ZZ TOP Oil Tools jointed to build the factories for wellhead equipment under the brand " JC Wellhead" and downhole tools under the brand "Techcore".

* "JC Wellhead" was estabilished in 2010 in Yancheng city, specialized in design and manufacturing of the oilfield wellhead equipment conformed with API 6A specification.

* "Techcore Oil Tools" was re-built in 2016 in Baoji city, specialized in design and manufacturing of drill stem testing tools, coiled tubing tools, wireline tools and other downhole tools.



Wellhead Product scope



Wellhead valves: Gate Valves, Plug Valves, Choke Valves, Check Valves, Mud Valves and various wellhead valve parts etc.

Wellhead Manifold: Choke and Kill Manifold, Drilling Floor Manifold, Fracturing manifold, Well Testing Manifold.

Wellhead Equipment: Wellhead Christmas Tree / X-Tree, Casing Head, Casing Hanger, Tubing Head,Tubing Hanger, Casing Spool, Tubing Spool, Drilling Spool etc.

Wellhead Adapter: Spacer Spool / Riser Spool ,Flange Adapter, Union Flange, Double Studded Adapter Flange, Welded Neck Flange, Blind Flange,Companion Flange, Instrument Flange,

Wellhead Clamp & Hub etc.

Wellhead Integral Fittings: Hammer Union, Elbow, Swivel Joint, Block Cross, Block Tee, Straight Pipe, Pipe Loops etc.

Well Pressure Control Equipment: Annular BOP, RAM BOP, Sucker Rod BOP etc
